Connections:
BSP / PN6 / PN10 / PN16 Connections
Maximum Operating Pressure:
6 bar (87 psi) on both sides
Maximum Heating Water Temp:
110°C
This email address is being protected from spambots. You need JavaScript enabled to view it.
BSP / PN6 / PN10 / PN16 Connections
Maximum Operating Pressure:
6 bar (87 psi) on both sides
Maximum Heating Water Temp:
110°C
Performance Specifications (For Use with Boilers)
Based on achieving a pool water temperature of 30°C. Suffix key: C = Cupronickel, S = Stainless Steel, T = Titanium.
| Type | Pool Capacity | Heat Transfer (82°C Boiler) | Heat Transfer (60°C Boiler) | Boiler Flow | Max Pool Flow | Weight | |||
|---|---|---|---|---|---|---|---|---|---|
| m³ | gal | Btu/h | kW | Btu/h | kW | m³/h (l/m) | m³/h (l/m) | kg | |
| EC80-5113-1C | 40 | 8,800 | 68,000 | 20 | 41,000 | 12 | 2.1 (35) | 9.0 (150) | 3.0 |
| EC80-5113-1S/T | 50 | 11,000 | 85,000 | 25 | 55,000 | 16 | 3.0 (50) | 12.0 (200) | 3.0 / 2.7 |
| EC100-5113-20 | 80 | 18,000 | 135,000 | 40 | 75,000 | 22 | 2.4 (40) | 10.2 (170) | 4.5 |
| EC100-5113-2S/T | 90 | 20,000 | 170,000 | 50 | 102,000 | 30 | 3.0 (50) | 12.0 (200) | 4.5 / 4.0 |
| EC120-5113-3C | 120 | 26,000 | 240,000 | 70 | 135,000 | 40 | 3.6 (60) | 13.5 (225) | 5.5 |
| EC120-5113-3S/T | 130 | 28,500 | 270,000 | 80 | 157,000 | 46 | 4.0 (67) | 15.0 (250) | 5.5 / 4.9 |
| FC100-5114-2C | 170 | 37,000 | 340,000 | 100 | 190,000 | 55 | 5.4 (90) | 21.0 (350) | 8.8 |
| FC100-5114-2S/T* | 180 | 39,500 | 375,000 | 110 | 205,000 | 60 | 6.0 (100) | 22.8 (380) | 8.8 / 7.8 |
| FG100-5115-20 | 230 | 50,000 | 580,000 | 170 | 340,000 | 100 | 7.2 (120) | 28.8 (480) | 16 |
| FG100-5115-25/T | 250 | 55,000 | 650,000 | 190 | 376,000 | 110 | 8.4 (140) | 33.0 (550) | 16 / 14 |
| FG160-5115-5S/T | 320 | 70,000 | 1,000,000 | 300 | 580,000 | 170 | 9.6 (160) | 39.0 (650) | 29 / 25 |
| GL140-3708-2C | 455 | 100,000 | 1,000,000 | 300 | 580,000 | 170 | 12.6 (210) | 50.4 (840) | 30 |
| GL140-3708-2T | 478 | 105,000 | 1,100,000 | 320 | 615,000 | 180 | 13.5 (225) | 54.0 (900) | 30 / 27 |
| GK190-5117-3C | 660 | 145,000 | 1,900,000 | 556 | 1,060,000 | 310 | 19.2 (320) | 75.0 (1,250) | 57 |
| GK190-5117-3T | 750 | 165,000 | 2,150,000 | 630 | 1,230,000 | 360 | 21.6 (360) | 96.0 (1,600) | 51 |
| JK190-5118-3C | 1,000 | 220,000 | 2,660,000 | 780 | 1,500,000 | 440 | 28.6 (475) | 114.0 (1,900) | 85 |
| JK190-5118-3T | 1,230 | 270,000 | 3,280,000 | 960 | 1,840,000 | 540 | 37.5 (625) | 150.0 (2,500) | 76 |
| PK190-5119-3C | 1,500 | 330,000 | 3,600,000 | 1055 | 2,000,000 | 585 | 44.0 (730) | 175.0 (2,900) | 120 |
| PK190-5119-3T | 1,680 | 370,000 | 4,000,000 | 1170 | 2,200,000 | 650 | 49.2 (820) | 216.0 (3,600) | 106 |
N.B. Stainless steel heat exchangers should not be used on pools fitted with salt water chlorinators or salt water pools.
Performance Specifications (For Solar Panels & Heat Pumps)
| Type | Pool Capacity | Heat Transfer | Solar/Heat Pump Flow | Max Pool Flow | Weight | ||
|---|---|---|---|---|---|---|---|
| m³ | gal | Btu/h | kW | m³/h (l/m) | m³/h (l/m) | kg | |
| Hot Water Source at 70°C | |||||||
| EC120-5113-3C/S/T | 50 | 11,000 | 102,000 | 30 | 1.5 (25) | 6.2 (104) | 5.5 / 5.5 / 4.9 |
| EC160-5113-5C/S/T* | 120 | 26,000 | 256,000 | 75 | 3.0 (50) | 15.0 (250) | 8.5 / 8.5 / 7.3 |
| FC160-5114-5C/S/T | 200 | 44,000 | 444,000 | 130 | 4.5 (76) | 23.0 (380) | 17 / 17 / 15 |
| FG160-5115-5C/S/T | 300 | 66,000 | 680,000 | 200 | 6.6 (110) | 29.0 (480) | 29 / 29 / 25 |
| Hot Water Source at 60°C | |||||||
| EC120-5113-3C/S/T | 40 | 8,800 | 68,000 | 20 | 1.5 (25) | 6.2 (104) | 5.5 / 5.5 / 4.9 |
| EC160-5113-5C/S/T | 110 | 24,000 | 190,000 | 55 | 3.0 (50) | 15.0 (250) | 8.5 / 8.5 / 7.3 |
| FC160-5114-5C/S/T | 180 | 40,000 | 325,000 | 96 | 4.5 (76) | 23.0 (380) | 17 / 17 / 15 |
| FG160-5115-5C/S/T | 230 | 50,000 | 512,000 | 150 | 6.6 (110) | 29.0 (480) | 29 / 29 / 25 |
| Hot Water Source at 45°C | |||||||
| EC120-5113-3C/S/T | 20 | 4,400 | 34,000 | 10 | 1.5 (25) | 6.2 (104) | 5.5 / 5.5 / 4.9 |
| EC160-5113-5C/S/T | 52 | 11,400 | 92,000 | 27 | 3.0 (50) | 15.0 (250) | 8.5 / 8.5 / 7.3 |
| FC160-5114-5C/S/T | 94 | 20,600 | 160,000 | 47 | 4.5 (76) | 23.0 (380) | 17 / 17 / 15 |
| FG160-5115-5C/S/T | 140 | 30,800 | 240,000 | 70 | 6.6 (110) | 29.0 (480) | 29 / 29 / 25 |
Why Choose a Bowman Heat Exchanger?
Bowman is a world leader in heat exchanger technology, providing optimum performance, efficiency, and reliability across tens of thousands of global installations.
Key Benefits
- Energy Saving: Features more heat transfer tubes than most competitor products, heating pools up to three times faster to significantly cut energy bills.
- Outstanding Reliability: Available in Titanium, Stainless Steel, or Cupro-Nickel tubestacks to match any specific pool chemical profile.
Premium Design & Technology
- Titanium Tubestacks: The ultimate "fit & forget" corrosion-resistant material. Withstands attack from all known sanitizing chemicals and is 100% compatible with salt water/saline systems. Features an exclusive 10-year material guarantee.

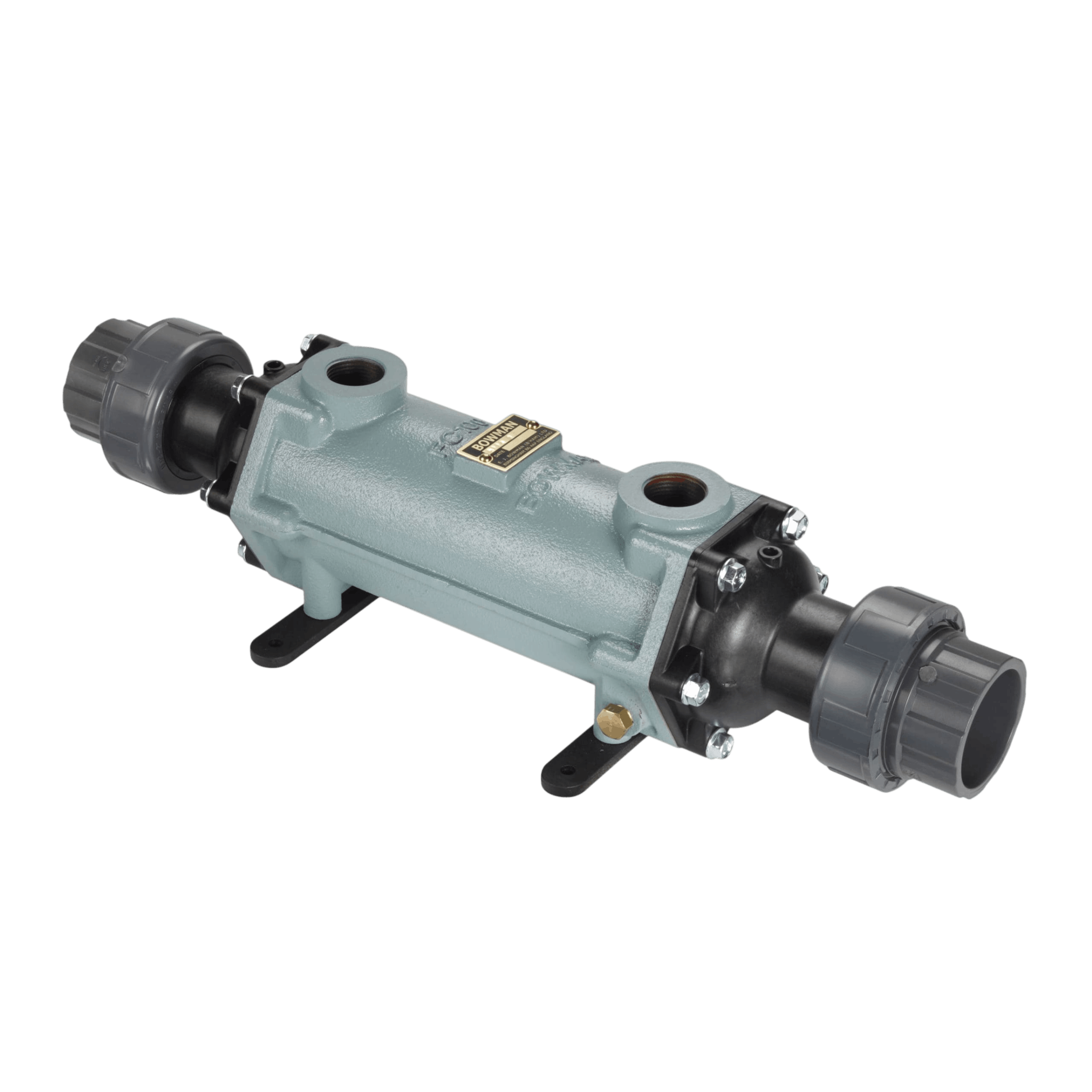

- NEW 'Universal Fit' End Covers: All EC models now ship with innovative composite end covers tailored seamlessly to either 1.5" nominal pipe size (48mm O/D) or metric 50mm O/D pool plumbing via built-in socket unions.
- Renewable Energy Compatibility: Specially optimized configurations designed to yield maximum heat absorption from low-temperature primary inputs, perfect for solar heating panels and ground source heat pumps.
