Minimum Rating:
40A
Maximum Rating:
125A
This email address is being protected from spambots. You need JavaScript enabled to view it.
40A
Maximum Rating:
125A
Rating & Dimension
| Model | Rating (Ampere) | Dimension |
|---|---|---|
| ATS1530 | 40A | 650 mm x 410 mm x 260 mm |
| ATS4050 | 100A | 650 mm x 410 mm x 260 mm |
| ATS6575 | 125A | 650 mm x 410 mm x 260 mm |
Motorised and Automatic Transfer Switch Features
| Operation Modes | Automatic and manual operation mode |
| Manual Override | Manual switch operation provided via external handle |
| Display Type | LCD display for voltage and timers |
| Configuration | Pre-programmed enabling the panel to run on installation with the ability to customise if necessary |
| Engine Management | Programmable Warming Up |
| Wiring Interface | Two Wire Start Signal for convenient wiring |
| Signal Output | Volt Free Contacts |
Comprehensive Status Indication
The panel features integrated LED functions display showing generator set / mains availability and switch position. Operators can easily track vital system statuses through dedicated visual indicators including Mains Available, Mains On Load, Generator Available, and Generator On Load.
Ready for Installation
Each system comes pre-programmed enabling the panel to run on installation straight out of the box, while retaining full structural capability to customise configurations if necessary. It includes a built-in battery charger and uses a simplified two-wire start signal interface for highly convenient field wiring.

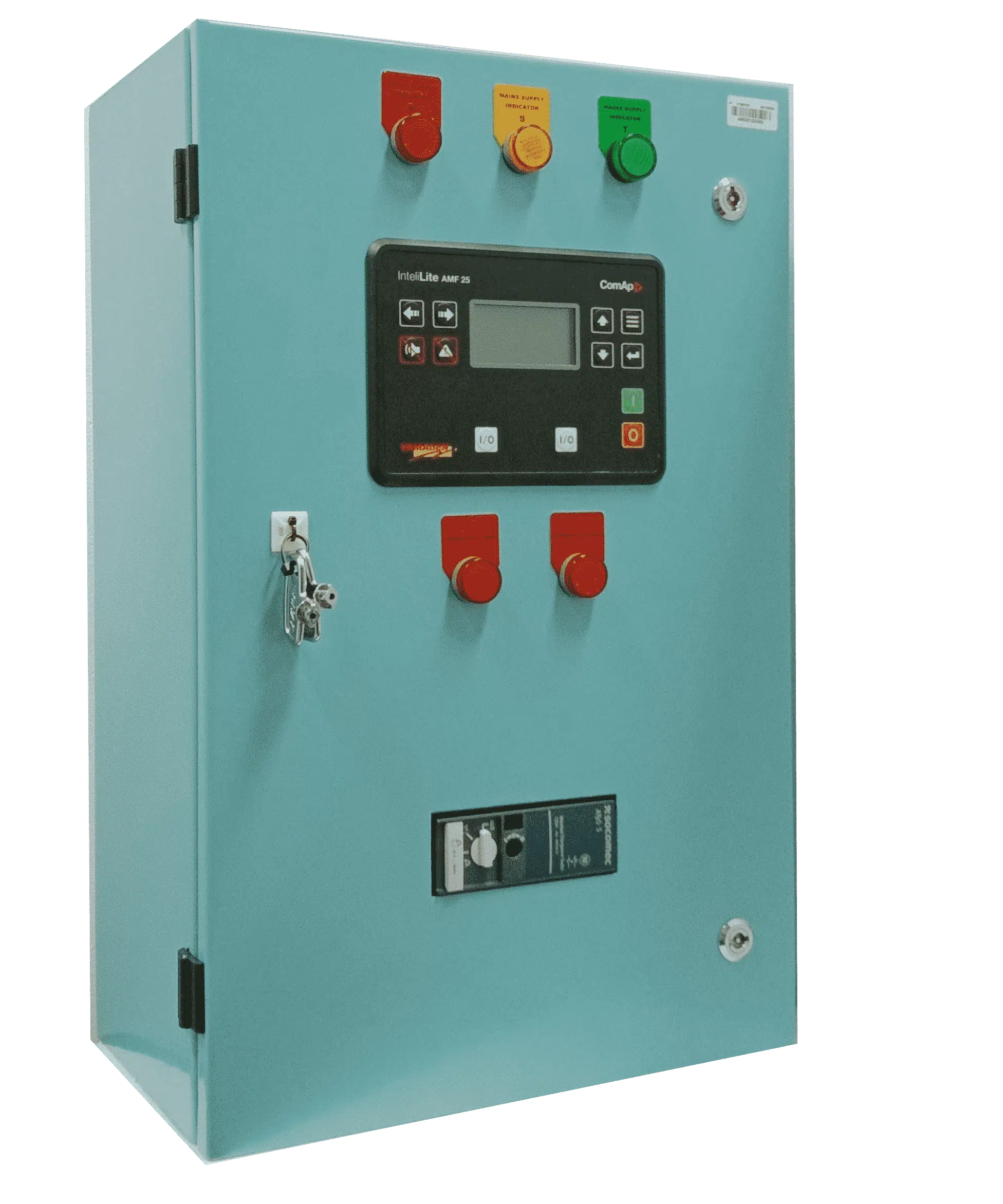

Control Panel
- ComAp Intelilite AMF25 controller core
Motorized Switch
- Socomec changeover system integration
Battery Charger
- Comap Inteli Charger unit
Communication Modules
- RS485 communication module
- Ethernet module connectivity
- 4G module network card
- GPS tracking module
- Remote display interface panel
