Full Specifications
| AC Generator Model | Y TG15TLV-O | |||||||
| Output rating (kVA) | 50 Hz | 380V | Prime | 12,5 | ||||
| Standby | 13,7 | |||||||
| 60 Hz | 440V | Prime | 13 | |||||
| Standby | 14,5 | |||||||
| Rated current ( A ) | 50 Hz | Prime | 19,0 | |||||
| Standby | 20,8 | |||||||
| 60 Hz | Prime | 17,1 | ||||||
| Standby | 19,0 | |||||||
| Rated frequency / rated speed | 50 Hz | 1500 RPM | ||||||
| 60 Hz | 1800 RPM | |||||||
| No. of poles | 4 poles | |||||||
| Phase and wire | 3-Phase 4-Wires | |||||||
| Power factor |
|
|||||||
| Voltage regulation | Within +/- 1.5 % | |||||||
| Excitation | Brushless, Rotating Exciter (with AVR) | |||||||
| Insulation | Class ‘H’ | |||||||
| Approx dry weight (silent) | kg | 703 | ||||||
| Sound Level dBA from 1 meter / 7 meter | dBA | 73 / 63 | ||||||
| Approx dry weight (open) | kg | 621 | ||||||

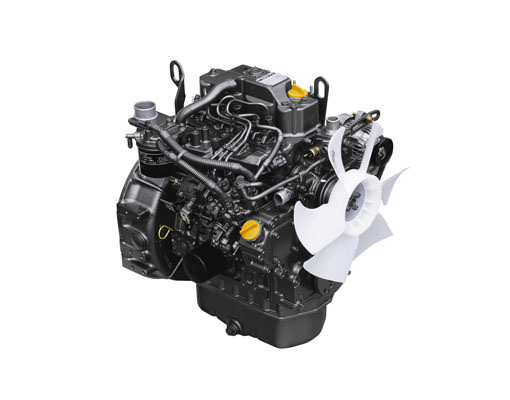

| Engine Model | 3TNV88-GGE | |
| Type of combustion chamber | Direct Injection | |
| Air intake system | Natural Aspiration | |
| Output rating (HP) | 1500 RPM ( 50 Hz ) | 12,3 |
| 1800 RPM ( 60 Hz ) | 14,8 | |
| Rated speed ( 50/60 Hz, rpm ) | 1500 / 1800 | |
| Bore (mm) x stroke (mm) | 88 x 90 | |
| Piston displacement (cm3) | 1642 | |
| No. of cylinders | 3 | |
| Fuel | Diesel Fuel ASTM 2D | |
| Fuel consumption (L/hr) at 50/60 Hz | 75% load | 2.69/3.24 |
| 100% load | 3.59/4.32 | |
| Lubricating oil capacity (L) | 6,7 | |
| Coolant capacity (L) | 2,0 | |
| Fuel tank capacity (L) | sound proof | 130 |
| open skid | 70 | |
| Starting motor (v-kW) | 12 – 1.2 | |
| Charging generator (V-A) | 12 – 40 | |
| Battery capacity (V-Ah) | 12 – 65 x 1 | |
| Starting system | Electric Starting Motor | |
| Cooling system | Radiator with fan | |
| Lubricating system | Forced lubrication with trochoid pump |
|
