SGE400

Genset dengan kapasitas 400 Kva 3 phase 380 Volt, 5o Hz.

Dapatkan Fitur Kontrol genset dimanapun dan kapanpun melalui smartphone Anda dengan menambahkan Additional Modul

Description

Standar genset dengan kapasitas 400 Kva 3 phase 380 Volt, 5o Hz.

Fitur Kontrol genset dimanapun dan kapanpun melalui smartphone Anda dengan menambahkan Additional Modul

Generator

Generator Model				SGE400
Output rating (kVA)	50 Hz	380V	Prime	400
			Standby	425
	60 Hz	440V	Prime	415
			Standby	455
Rated current (A)	50 Hz	Prime		608.8
		Standby		669.7
	60 Hz	Prime		544.6
		Standby		597.1
Rated frequency / rated speed	50 Hz	1500 RPM
	60 Hz	1800 RPM
No. of poles	4 poles
Phase and wire	3-Phase 4-wire
Power factor	0.8 (lagging)
Voltage regulation	Within +/- 1.5 %
Excitation	Brushless, Rotating Exciter (with AVR)
Insulation	Class ‘F’

Engine

Engine Model		DC13072A
Type of combustion chamber		Direct Injection
Air intake system		Turbo Charged
Output rating (kW)	1500 RPM (50 Hz)	365
	1800 RPM (60 Hz)	410
Rated speed (50/60Hz, rpm)		1500 / 1800
Bore (mm) x stroke (mm)		130 x 160
Piston displacement (L)		12.7
No. of cylinders		6 in line
Governer Type		EMS – EUI
Fuel consumption (L/hr) at 100% load	50 Hz	73.9
	60 Hz	76.9
Lubricating oil capacity (L)		30
Coolant capacity (L)		22
Fuel tank capacity (L)	sound proof	750
	open skid	1000
Starting motor (v-kW)		24 – 5.5
Charging generator (V-A)		28 – 100
Battery capacity (V-Ah)		12 – 150 x 2
Starting system		Electric Starting Motor
Cooling system		Radiator with fan Air to Air Charge Air Cooler
Lubricating system		Forced lubrication with trochoid pump

Dimension

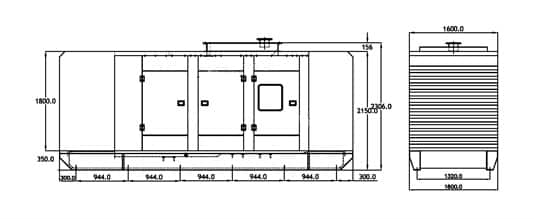

Soundproof Dimension (approx.)	L	mm	5320
	W	mm	1600
	H	mm	2100
Approx dry weight		kg	4500

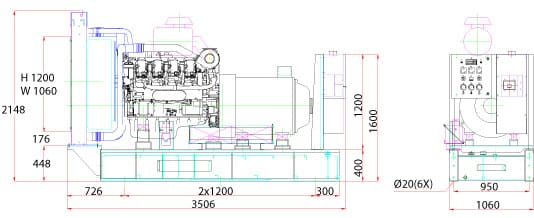

Open Type Dimension (approx.)	L	mm	3650
	W	mm	1180
	H	mm	2150
Approx dry weight		kg	3500

Note: This specification is subject to change without notice due to our continuous product improvement.

Note

Prime output rating	Supplies electric power continuously at variable load. No limitation to the annual hours of operation and can supply 10% overload power for 1 hour in 12 hours Conforms with SAE J816B continuous, DIN 6270, BS 6270, BS 5514 or 649 continuous & ISO 3046/I continuous power.
Standby output rating	Supplies electricity during normal utility power failure at variable load. No overload is permitted on this rating. Conforms with SAE J816B intermittent, DIN 6270, BS 5514 or 649 one hour & ISO 3046 / 1 fuel stop power.
Engine output represents at ISO 3046, standard conditions	Air Temperature	25C
	Relative humidity	30%
	Barometric pressure	750 mmHg

Additional

Anda dapat menambahkan modul untuk fitur yang lebih lengkap

Hubungi Tim Kami untuk mendapatkan Tipe dan Kapasitas Genset Sesuai kebutuhan Anda
