Full Specifications
Generator Set Specifications
Generator Model |
YTG8500 |
|||
Output rating (kVA) |
50 Hz |
220V |
Prime |
8.5 |
Standby |
9.3 |
|||
60 Hz |
240V |
Prime |
10.5 |
|
Standby |
11.5 |
|||
Rated current (A) |
50 Hz |
Prime |
38.6 |
|
Standby |
42.5 |
|||
60 Hz |
Prime |
47.7 |
||
Standby |
52.5 |
|||
Rated frequency / rated speed |
50 Hz |
3000 RPM |
||
60 Hz |
3600 RPM |
|||
No. of poles |
2 poles |
|||
Phase and wire |
1-Phase 2-wire |
|||
Power factor |
1.0 |
|||
Voltage regulation |
Within +/- 1.5 % |
|||
Excitation |
Brushless, Rotating Exciter (with AVR) |
|||
Insulation |
Class ‘H’ |
|||

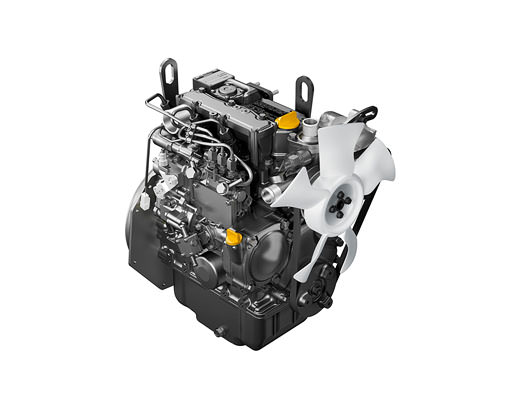

Engine Specifications
Engine Model |
3TNM72 |
|
Type of combustion chamber |
Direct Injection |
|
Air intake system |
Natural Aspiration |
|
Output rating (kW) |
3000 RPM (50 Hz) |
13.2 |
3600RPM (60 Hz) |
15.5 |
|
Rated speed (50/60Hz, rpm) |
3000 / 3600 |
|
Bore (mm) x stroke (mm) |
72 x 74 |
|
Piston displacement (cm3) |
903 |
|
No. of cylinders |
3 |
|
Fuel |
Diesel Fuel ASTM 2D |
|
Fuel consumption (L/hr) at 70% load |
50 Hz |
2.9 |
60 Hz |
3.8 |
|
Lubricating oil capacity (L) |
3.2 |
|
Coolant capacity (L) |
2.6 |
|
Fuel tank capacity (L) |
sound proof |
76 |
open skid |
– |
|
Starting motor (v-kW) |
12 – 1.2 |
|
Charging generator (V-A) |
12 – 40 |
|
Battery capacity (V-Ah) |
12 – 65 x 1 |
|
Starting system |
Electric Starting Motor |
|
Cooling system |
Radiator with fan |
|
Lubricating system |
Forced lubrication with trochoid pump |
|
