Full Specifications
Generator Set Specifications
Generator Model |
YTG65TLV |
|||
Output rating (kVA) |
50 Hz |
380V |
Prime |
50.0 |
Standby |
55.0 |
|||
60 Hz |
440V |
Prime |
60.0 |
|
Standby |
65.0 |
|||
Rated current (A) |
50 Hz |
Prime |
76.0 |
|
Standby |
83.6 |
|||
60 Hz |
Prime |
78.7 |
||
Standby |
85.3 |
|||
Rated frequency / rated speed |
50 Hz |
1500 RPM |
||
60 Hz |
1800 RPM |
|||
No. of poles |
4 poles |
|||
Phase and wire |
3-Phase 4-wire |
|||
Power factor |
0.8 (lagging) |
|||
Voltage regulation |
Within +/- 1.5 % |
|||
Excitation |
Brushless, Rotating Exciter (with AVR) |
|||
Insulation |
Class ‘H’ |
|||

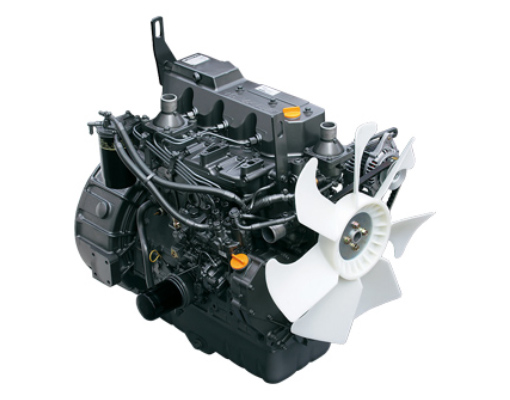

Engine Specifications
Engine Model |
4TNV106 |
|
Type of combustion chamber |
Direct Injection |
|
Air intake system |
NA |
|
Output rating (HP) |
1500 RPM (50 Hz) |
61.0 |
1800 RPM (60 Hz) |
72.5 |
|
Rated speed (50/60Hz, rpm) |
1500 / 1800 |
|
Bore (mm) x stroke (mm) |
106 x 125 |
|
Piston displacement (cm3) |
4412 |
|
No. of cylinders |
4 |
|
Fuel |
Diesel Fuel ASTM 2D |
|
Fuel consumption (L/hr) at 100% load(The value is subject to change depending on ambient temperature and fuel quality) |
50 Hz |
11.5 |
60 Hz |
13.9 |
|
Lubricating oil capacity (L) |
14 |
|
Coolant capacity (L) |
6 |
|
Fuel tank capacity (L) |
sound proof |
230 |
open skid |
130 |
|
Starting motor (v-kW) |
12 – 3.0 |
|
Charging generator (V-A) |
12 – 60 |
|
Battery capacity (V-Ah) |
12 – 65 x 1 |
|
Starting system |
Electric Starting Motor |
|
Cooling system |
Radiator with fan |
|
Lubricating system |
Forced lubrication with trochoid pump |
|
