Full Specifications
Generator Set Specifications
Generator Model |
YTG20TLV |
|||
Output rating (kVA) |
50 Hz |
380V |
Prime |
15.0 |
Standby |
16.5 |
|||
60 Hz |
440V |
Prime |
18.0 |
|
Standby |
20.0 |
|||
Rated current (A) |
50 Hz |
Prime |
22.8 |
|
Standby |
25.1 |
|||
60 Hz |
Prime |
23.6 |
||
Standby |
26.2 |
|||
Rated frequency / rated speed |
50 Hz |
1500 RPM |
||
60 Hz |
1800 RPM |
|||
No. of poles |
4 poles |
|||
Phase and wire |
3-Phase 4-wire |
|||
Power factor |
0.8 (lagging) |
|||
Voltage regulation |
Within +/- 1.5 % |
|||
Excitation |
Brushless, Rotating Exciter (with AVR) |
|||
Insulation |
Class ‘H’ |
|||

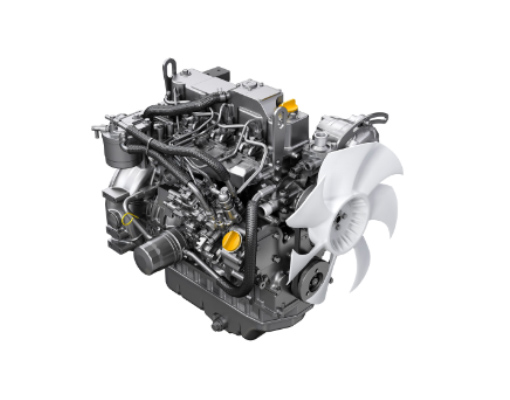

Engine Specifications
Engine Model |
4TNV88 |
|
Type of combustion chamber |
Direct Injection |
|
Air intake system |
Natural Aspiration |
|
Output rating (kW) |
1500 RPM (50 Hz) |
16.4 |
1800 RPM (60 Hz) |
19.6 |
|
Rated speed (50/60Hz, rpm) |
1500 / 1800 |
|
Bore (mm) x stroke (mm) |
88 x 90 |
|
Piston displacement (cm3) |
2190 |
|
No. of cylinders |
4 |
|
Fuel |
Diesel Fuel ASTM 2D |
|
Fuel consumption (L/hr) at 100% load |
50 Hz |
4.78 |
60 Hz |
5.0 |
|
Lubricating oil capacity (L) |
7.4 |
|
Coolant capacity (L) |
2.7 |
|
Fuel tank capacity (L) |
sound proof |
150 |
open skid |
110 |
|
Starting motor (v-kW) |
12 – 1.4 |
|
Charging generator (V-A) |
12 – 40 |
|
Battery capacity (V-Ah) |
12 – 65 x 1 |
|
Starting system |
Electric Starting Motor |
|
Cooling system |
Radiator with fan |
|
Lubricating system |
Forced lubrication with trochoid pump |
|
