Genset dengan kapasitas 500 Kva 3 phase 380 Volt, 5o Hz.
Dapatkan Fitur Kontrol genset dimanapun dan kapanpun melalui smartphone Anda dengan menambahkan Additional Modul
Description
Generator
Engine
Dimension
Note
Additional
Description
Standar genset dengan kapasitas 500 Kva 3 phase 380 Volt, 5o Hz.
Fitur Kontrol genset dimanapun dan kapanpun melalui smartphone Anda dengan menambahkan Additional Modul
Generator
| Generator Model | SGE500 | |||
| Output rating (kVA) | 50 Hz | 380V | Prime | 500 |
| Standby | 550 | |||
| 60 Hz | 440V | Prime | 505 | |
| Standby | 555 | |||
| Rated current (A) | 50 Hz | Prime | 761.1 | |
| Standby | 837.1 | |||
| 60 Hz | Prime | 662.7 | ||
| Standby | 728.9 | |||
| Rated frequency / rated speed | 50 Hz | 1500 RPM | ||
| 60 Hz | 1800 RPM | |||
| No. of poles | 4 poles | |||
| Phase and wire | 3-Phase 4-wire | |||
| Power factor | 0.8 (lagging) | |||
| Voltage regulation | Within +/- 1.5 % | |||
| Excitation | Brushless, Rotating Exciter (with AVR) | |||
| Insulation | Class ‘F’ | |||
Engine
| Engine Model | DC1643A | |||
| Type of combustion chamber | Direct Injection | |||
| Air intake system | Turbo Charged | |||
| Output rating (kW) | 1500 RPM (50 Hz) | 439 | ||
| 1800 RPM (60 Hz) | 438 | |||
| Rated speed (50/60Hz, rpm) | 1500 / 1800 | |||
| Bore (mm) x stroke (mm) | 127 x 154 | |||
| Piston displacement (L) | 15,6 | |||
| No. of cylinders | 8 V | |||
| Governer Type | EMS – EUI | |||
| Fuel consumption (L/hr) at 100% load | 50 Hz | 91.4 | ||
| 60 Hz | 91.9 | |||
| Lubricating oil capacity (L) | 28 | |||
| Coolant capacity (L) | 50 | |||
| Fuel tank capacity (L) | sound proof | 750 | ||
| open skid | 1200 | |||
| Starting motor (v-kW) | 24 – 6.7 | |||
| Charging generator (V-A) | 28 – 100 | |||
| Battery capacity (V-Ah) | 12 – 150 x 2 | |||
| Starting system | Electric Starting Motor | |||
| Cooling system | Radiator with fanAir to Air Charge Air Cooler | |||
| Lubricating system | Forced lubrication with trochoid pump | |||

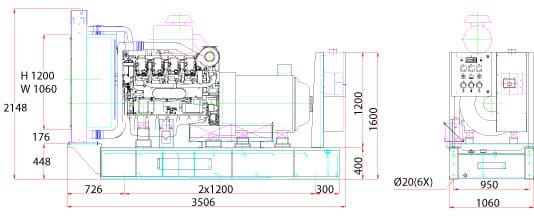

Dimension
| Soundproof Dimension (approx.) | L | mm | 5320 | |
| W | mm | 1600 | ||
| H | mm | 2100 | ||
| Approx dry weight | kg | 5000 | ||
| Open Type Dimension (approx.) | L | mm | 3650 | |
| W | mm | 1180 | ||
| H | mm | 2150 | ||
| Approx dry weight | kg | 4000 | ||
Note: This specification is subject to change without notice due to our continuous product improvement.
Note
| Prime output rating | Supplies electric power continuously at variable load. No limitation to the annual hours of operation and can supply 10% overload power for 1 hour in 12 hours Conforms with SAE J816B continuous, DIN 6270, BS 6270, BS 5514 or 649 continuous & ISO 3046/I continuous power. |
|
| Standby output rating | Supplies electricity during normal utility power failure at variable load. No overload is permitted on this rating. Conforms with SAE J816B intermittent, DIN 6270, BS 5514 or 649 one hour & ISO 3046 / 1 fuel stop power. |
|
| Engine output represents at ISO 3046, standard conditions | Air Temperature | 25C |
| Relative humidity | 30% | |
| Barometric pressure | 750 mmHg | |
Additional
Anda dapat menambahkan modul untuk fitur yang lebih lengkap
